195 MW Mission Road Solar

1004.88 Acre Site - Rosebush, Michigan

J. Ranck Electric Inc. (JRE) was contracted for the engineering, procurement, and construction for the expansion of the ground mounted solar arrays in Michigan. The project was part of the initiative to build co-location renewable power generating facilities, pairing solar farms with existing wind parks.

JRE contracts included the installation of AC and DC electrical work including the installation of inverters, transformers, equipment piles, racks, PV modules, and collection systems. JRE also installed the raceways and cabling for the NLS communication system for the array. Work also included substation expansion and interconnection.

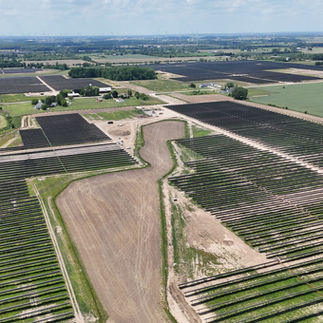

Mission Road 1,004.88 acre site - Rosebush, Michigan

• Size – 194.183 MW DC/ 171.96 MW AC

• Key Dates: Engineering start April 2023, Construction June 2024 - ongoing

• Posts - 53,669

• Racking – ATI Single Axis Tracker – 3,610 rows

• Bearing Housing Assembly – 56,317

• Torque Tubes – 39,349

• Module Clamps – 361,225

• Modules installed – 354,132

• Power Electronics, Model No. – Gamesa Electric Proteus PV 4300 (40)

• Tracker Motors - 161

• Linear Footage of DC Cable – 1,230,914’

• Linear Footage of MV Cable – 668,808’

• Linear Footage of FO Cable – 222,936’

• Linear Footage of Silt Fence – 112,509’

• Linear Footage of Access Roads – 53,978’

• Acreage of Vegetation Buffer – 26.74ac

• Weather stations – 6
